Reversing CircuitsPro
Reversing Hoist Starter
Dual-contactor reversing with electrical interlocking and a standalone overload relay. Wire a forward-reverse motor control circuit for hoist applications with phase-swap direction control.
What's Included
Included Tools
⚡Live Ladder Diagram
🔧Digital Multimeter
💬AI MentorPro
✅Progress Tracking
📚Help Reference

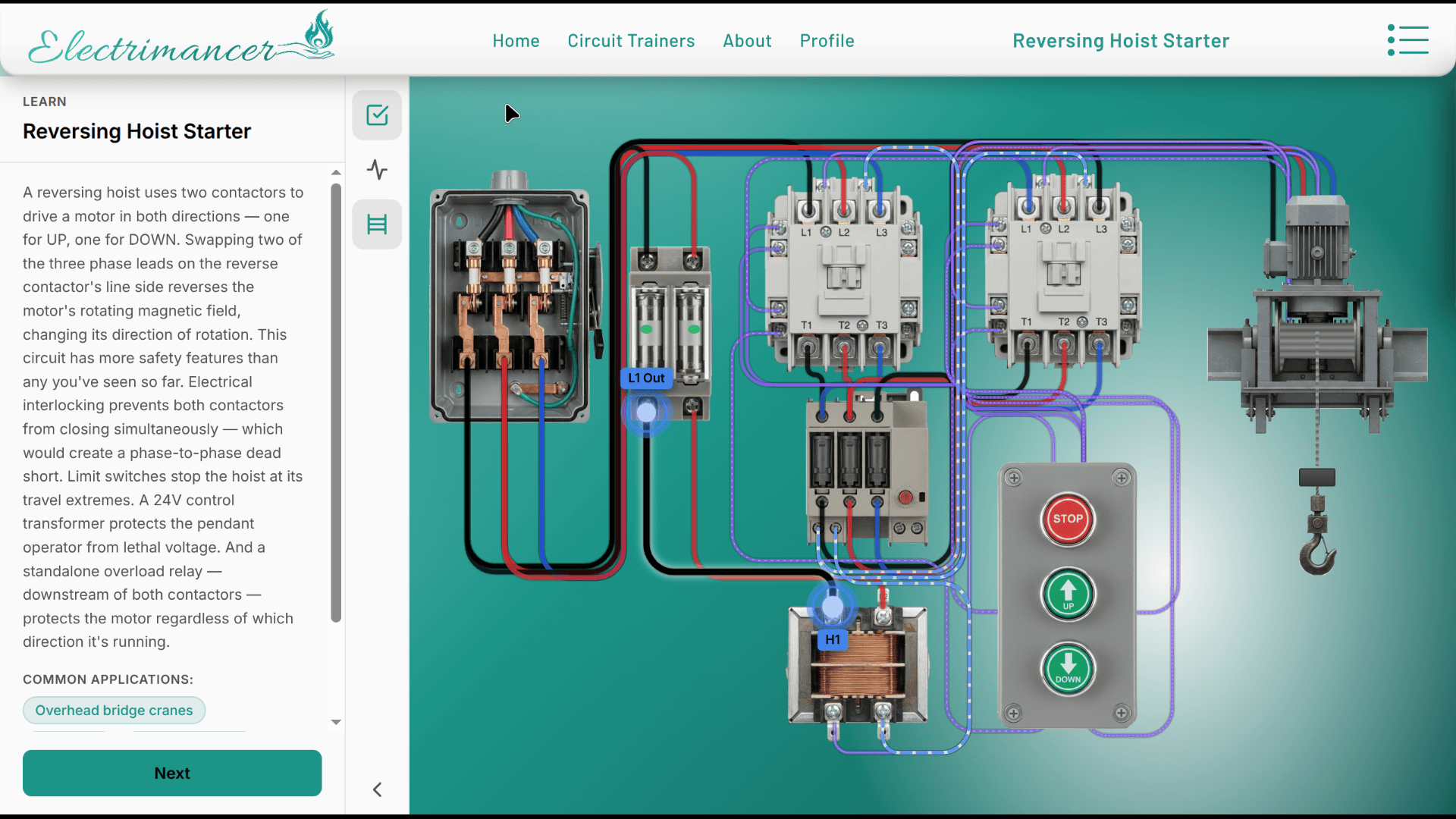

Interactive workbench with dual contactors and standalone overload relay
