Jogging Circuits

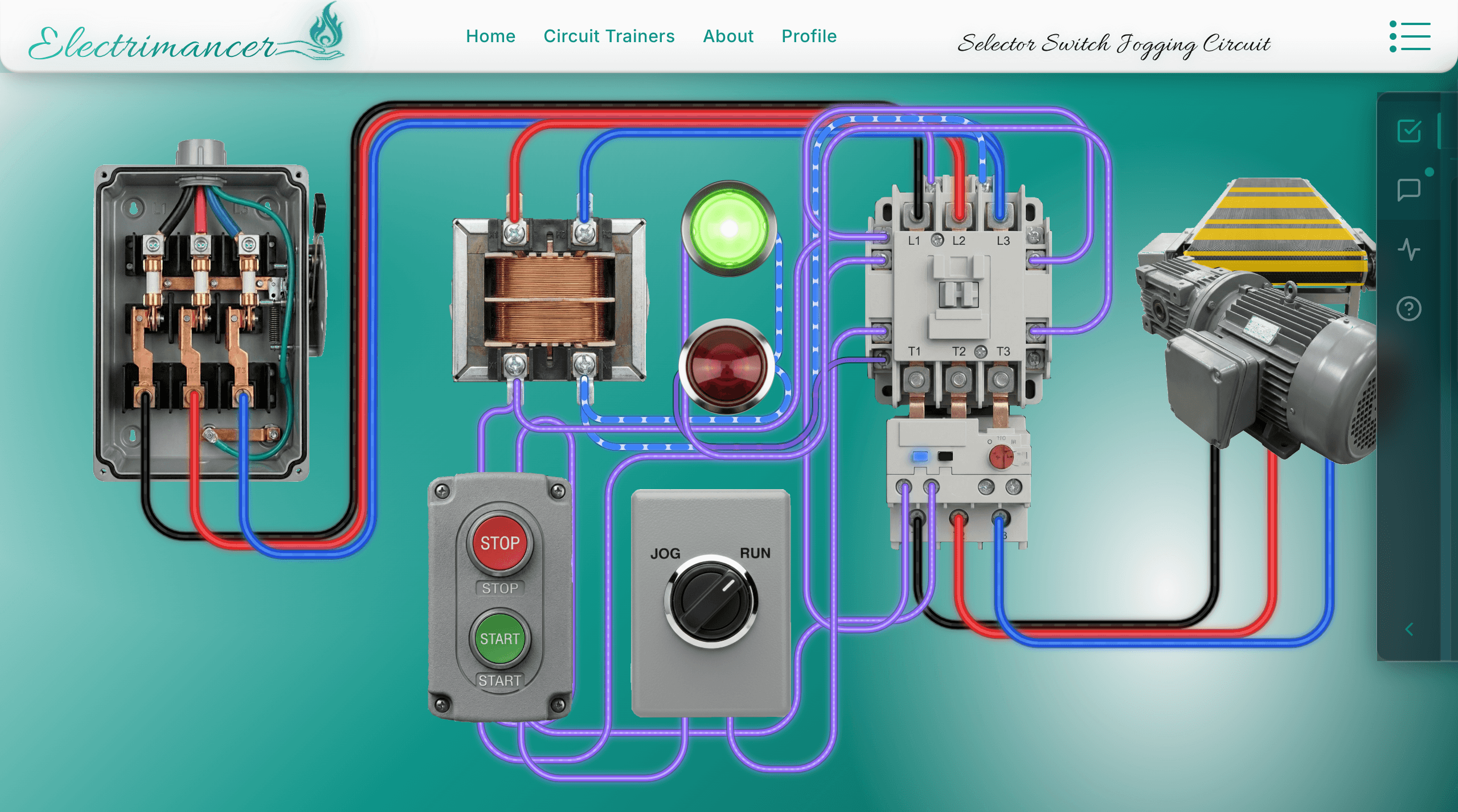

2-position selector switch controls seal-in. RUN position enables latching, JOG position disables seal-in. Includes a pilot light exploration where you wire green and red indicators using NO and NC auxiliary contacts to display motor status.

Control relay run/stop/jog circuit using DPDT relay. Separate contact sets prevent backfeed between run and jog modes. Includes an exploration where you rewire for jog-only operation to understand why the control relay and seal-in path exist.
