Wire, Program, and Commission a PowerFlex 525
Build the complete drive circuit, program it through the HIM, and commission the pump. Then upgrade the commissioned circuit with 4–20 mA speed control and a dual-NC E-stop wired through both STO channels, and diagnose VFD faults.
What You'll Be Able To Do
- Wire VFD power input, motor output, digital I/O, and analog speed control
- Program PowerFlex 525 motor nameplate and control parameters through the HIM
- Commission speed control, direction, fault trip, and restart behavior
- Retrofit the 0–10 V speed reference to a powered 4–20 mA current loop
- Integrate a dual-channel emergency stop through Safe Torque Off (STO)
- Diagnose VFD-specific faults using the drive display and multimeter
What's Included
Included Tools
🔧Digital Multimeter
💬MentorPro
✅Progress Tracking
📚Help Reference

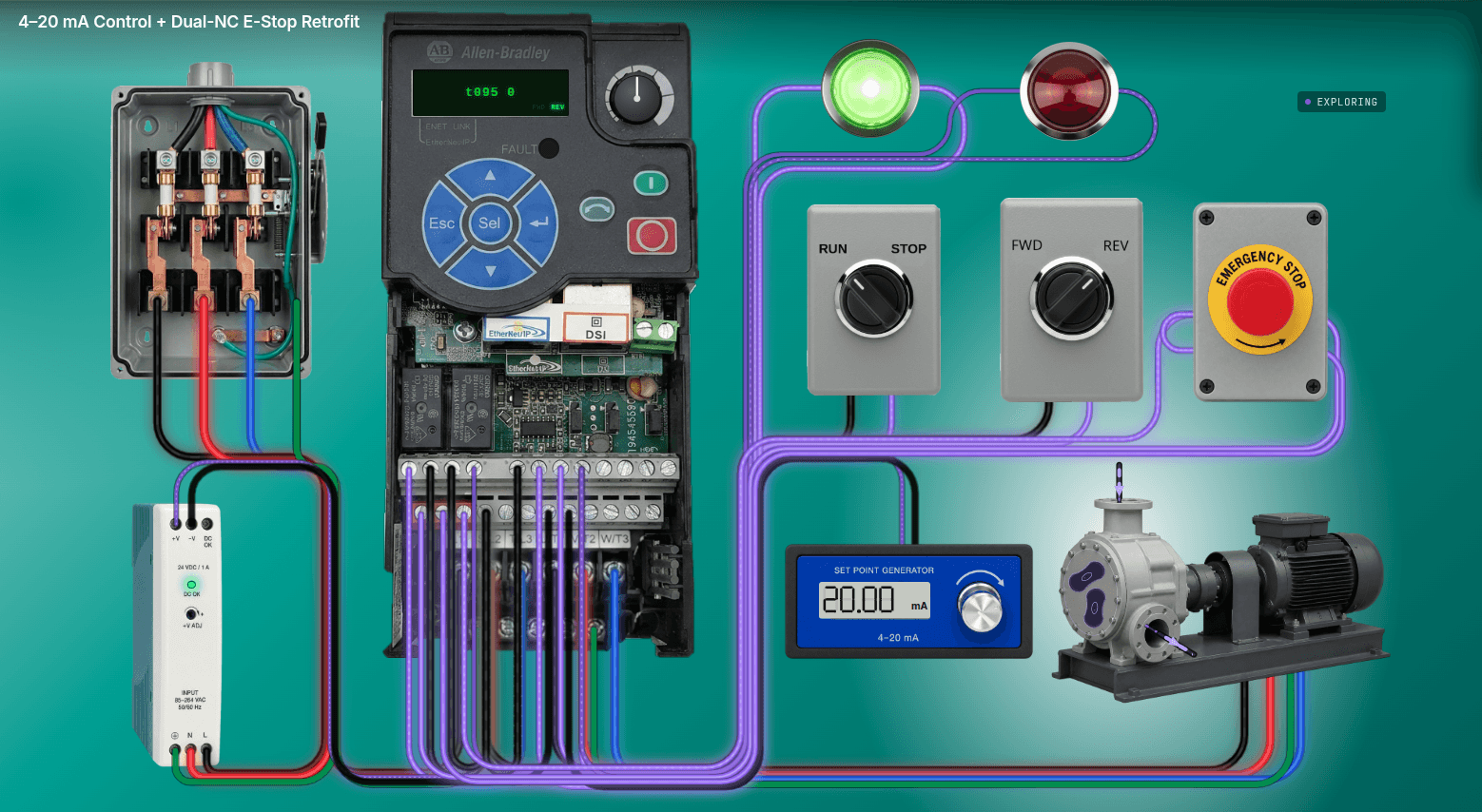

Interactive workbench with PowerFlex 525 VFD, pump motor, and analog speed control
